WIRELESS FALL SAFETY SYSTEMS

The 433-EC Wireless Alarm works with the Smart Caregiver Cordless Bed and Chair Sensor Pads,

Floor Mats, Motion Sensors, Call Buttons and Window Exit Alarm.

Alarm Features:

• Wireless Alarm
• Alarm can be up to 90 meters (300') from the Pads
• Monitor can hold up to six components
• Nurse Call Port
• Adjustable Volume, Low, Medium and High
• Low Battery Light on Alarm
• No noise in patient's room
• Wide range of components for all caring needs

The TL-2100GU Wireless Alarm Monitor works with the Smart Caregiver Corded and Cordless Bed and Chair Sensor Pads, Floor Mats and Motion Sensors.

Alarm Features:

• Wireless Alarm
• Alarm can be up to 90 meters (300') from the Pads
• No alarm in patient's room
• Reset Button on Front of Alarm Monitor
• Low Battery Light on Alarm Monitor
• Volume control
• Compatable with PIR-01 Motion Sensor
• Optional Setting: Carer with Caregiver key can reset the monitor with the Caregiver Key only which tamper proofs the monitor
• Lost Pad Alert

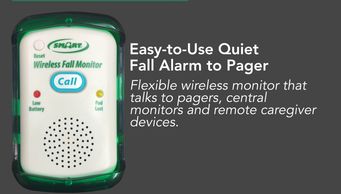

The TL-4016R Wireless Alarm Monitor & Pager works with the Smart Caregiver Corded Bed and Chair Sensor Pads and Corded Floor Mats.

Alarm features:

• Wireless Alarm Monitor with Pager
• Pager can be up to 90 meters (300') from the Alarm
• Alarm Monitor is on silent so no alarm noise in patient's room.
• Pager can call out the alert or place on vibrate
• Rest Button on Front of Alarm Monitor
• Low Battery Light on Alarm Monitor
• Tone Options
• Volume Control
• Alert Delay Option
• Pager with Vibrate Option

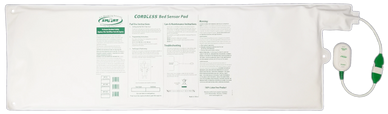

Bed pads can be used to monitor patients getting out of bed. You place the pad under the shoulder blades of the patient and as they sit to get out of bed and release pressure from the pad the pager (433-EC) will alarm.

We stock two sizes of pads:

• PTB-WI: 20'' x 30''
• PTB-RI: 10'' x 30''

Chair pads are used to monitor patients when using a chair. The pad is placed on the seat of the chair (a pillow case or sheet can be used over it for discreetness). When the patients gets out of the seat to stand the pager (433-EC) will alarm.

Pad size:

•  PTB-WI: 10'' x 15''

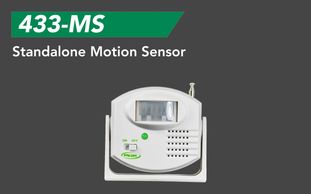

The 433-MS Wireless Motion Sensor has flexible mounting options to capture patients movement from any angle. The motion sensor can be placed at the headboard end of the bed, it will then pick up the movement when the patient's feet come over the side of the bed and are about 12 inches from the floor. The motion sensor makes no noise in the room, but sends a wireless alert to the pager (433-EC) which will then alarm.

The 433-NC Wireless Nurse Call Button allows the patient to signal to carers that they need assistance. This also comes standard with necklace lanyard and wall-mounting cradle. When pressed the button sends a wireless, silent signal to the pager (433-EC) which will then alarm.

 The 433-EXT Window/Door exit alarm can be mounted to a window or door frame using the mounting equipment provided when purchased. When the window or door is opened the contact magnet is detached from the sensor a wireless, silent signal is then sent to the pager (433-EC) which will then alarm.

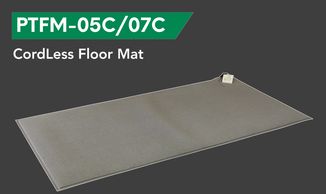

These floor mats can be placed by the bedside or in a door way. When the patient leaves the bed or exits the room pressure will be applied to the mat, it will then send a wireless, silent signal to the pager (433-EC) which will then alarm.

We supply two sizes of this product:

• PTFM-05C 61cm x 91cm (2ft x 3ft)
• PTFM-07C 61cm x 122cm (3ft x 4ft)

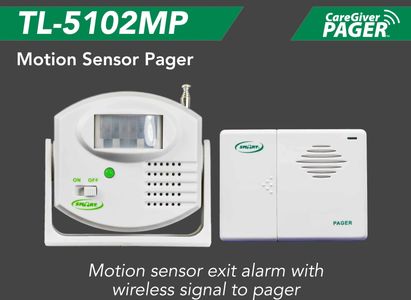

• Wireless motion sensor and alarm, up to 300 feet (90 meter) range
•  Motion sensor can be placed by bed or doorway to monitor residents’ activities

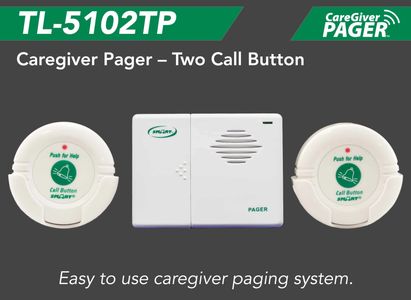

•  The TL-5102TP is a Stand Alone Personal Paging System and includes two Call Buttons and one Pager. When pressed, the Nurse Call Buttons send a wireless signal to the pager which can range to 300 feet (90 meters), alerting the caregiver that assistance is required.
