433-cmu central monitor system

Central Monitor can receive either 40 or 60 components, and identifies by number on the screen and by calling out the alert.  In turn the central monitor will send the alert to Carer Pagers which will also announce the alarm or can alternatively operate on vibrate mode.

Available in two models:

• 433-CMU-40 - Up to 40 components
• 433-CMU-60 - Up to 60 components

Wireless, cordfree bed sensor pads come in two sizes.  Pads can be up to 300' (90 meters) from the Central Monitor.  Pads come with three warranties, either 45 day, 90 day or one year.  Pads are placed under the lower sheet in the back or buttock area of the patient.

We stock two sizes of pads:

•  PTB-WI - 20'' x 30''
•  PTB-RI - 10'' x 30''

Wireless, cordfree chair pads, come with the option of 3 warranties of either 45 day, 90 day or one year.  Pads are placed in the seat of the chair and can be up to 300' (90 meters) from the central monitor.

• Pad size: PTC-WI - 10" x 15".

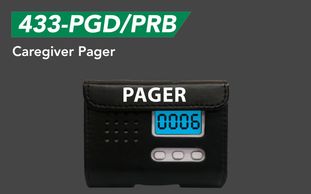

 The 433-PRB caregiver pager is pocket sized and designed for use with the 433 Central Monitoring Unit (CMU). The central monitor sends a wireless signal to the caregiver pager and the large LCD screen clearly indicates which patient/device triggered the alarm. The 433-PRB has a reset button that resets the central monitor when alarming.

 The 433-MS Wireless Motion Sensor has flexible mounting options to capture patients movement from any angle. The motion sensor can be placed at the headboard end of the bed it will then pick up the movement when the patient's feet come over the side of the bed and are about 12 inches from the floor. The motion sensor makes no noise in the room, but sends a wireless alert to the central monitor.

The 433-NC Wireless Nurse Call Button allows the patient to signal to carers that they need assistance. This also comes standard with necklace lanyard and wall-mounting cradle. When pressed the button sends a wireless, silent signal to the central monitor.

The 433-EXT Window/Door exit alarm can be mounted to a window or door frame using the mounting equipment provided when purchased. When the window or door is opened the contact magnet is detached from the sensor a wireless, silent signal is then sent to the central monitor.

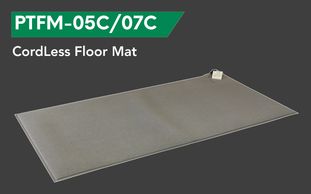

 The PTFM floor mats can be placed by the bedside or in a door way. When the patient leaves the bed or exits the room pressure will be applied to the mat, it will then send a wireless, silent signal to the pager (433-EC) which will then alarm.
We supply two sizes of this product:

• PTFM-05C 61cm x 91cm (2ft x 3ft)
• PTFM-07C 61cm x 122cm (3ft x 4ft)

 The Emergency Call Buttons & Light System (2017-SYS) include a wireless call button with pull cord, reset button, and call alert with light. It is ideal for bathroom and hallway notification systems. All components are easily mounted on most surfaces with no hard wiring required.

Can be used as a stand alone system or programmed into the central monitor.
